HERMA Labelling Machines Products Semi-automatic labelling machines

Semi-automatic labelling machine:
HERMA wrap-around labeller 211 for round products

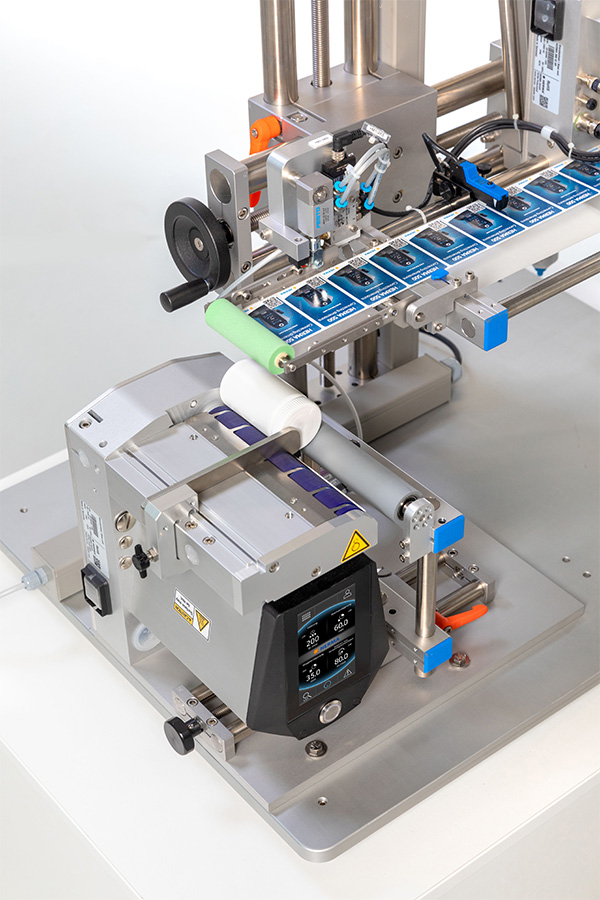

A labelling machine with a roll mechanism, multiple controls, and a sturdy base for precise labelling of products.

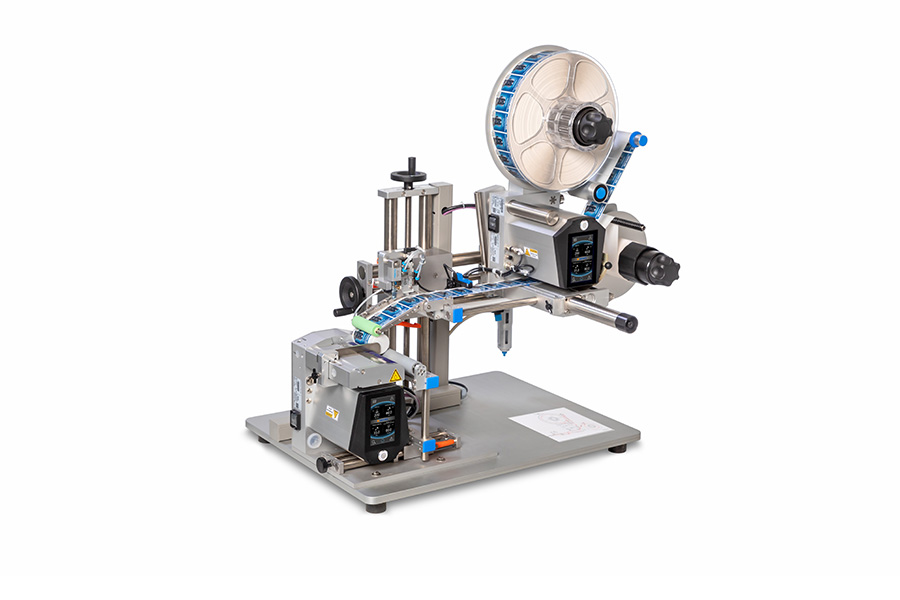

Automatic labelling machine with multiple rolls that applies labels on a conveyor belt system. Control unit with display is visible.
A modern printing system with a control panel, a printing unit, and various mechanical components for labelling or marking.

Benefits of the HERMA 211 at a glance

  • Semi-automatic wrap-around labeller for labelling cylindrical products.
  • The spectrum of possible product diameters ranges from 20 to 120 mm
  • Fast retooling
  • Adjustable to different product diameters in no time at all
  • Heart of the system is the high-performance HERMA 500 applicator
  • An additional basic drive unit from the HERMA 500 is used to drive the roller prism
  • No control box or PLC necessary
  • All necessary parameters can be easily set using the integrated operator display
  • Aligned wrap-around labelling optionally available

Contact us now



All-around durability

The labelling of cylindrical products like pipes, tubes, glass bottles or ampules poses particular challenges for manufacturers or packaging service providers in terms of precision. The HERMA 211 semi-automatic labelling system is the perfect solution for such a task. Its exceptional durability makes it ideal for continuous duty and fulfills the most stringent requirements for labelling performance.

The product to be labelled is manually placed in a rotating roller prism and set in rotary motion. A pivot beak is lowered and rolls the label on with precise positioning. This ensures wrap-around application of the label with no misalignment. Then the product is removed by hand. The semi-automatic system is extremely easy to retool. The innovative HERMA 500 is used as the applicator. A variety of printers can be used to print expiration dates or batch numbers on the product .
