Wrap-around labelling system
HERMA 132M / HERMA 040M

Automated packaging machine with multiple stations, displays, and conveyor system for processing products.
Automatic labelling machine with touchscreen control, designed for the efficient labelling of bottles or containers.
Machine parts for bottling, including sensors and mechanisms to control the process.
Control unit with touchscreen from Siemens, displaying technical information and controls for industrial applications.
Machine with rotating parts and a conveyor belt, used for industrial processes. Technical components are visible.
Automated packaging machine with a transparent container that picks up the container from a conveyor belt.
Machine for processing capsules with a rotating conveyor system and colored capsules on a conveyor belt.
Industrial labelling machine with a print head, control screen, and various connections for labelling and coding.
A labelling device with a blue sensor that detects labels on transparent packaging. Several labels are visible.
Industrial labelling machine with a screen, keyboard, and various sensors for automated labelling and coding.

High performance without compromise

The wrap-around labeller is available in two versions:

  • HERMA 132M - With the continuously rotating starwheel, up to 600 products/minute can be labelled.

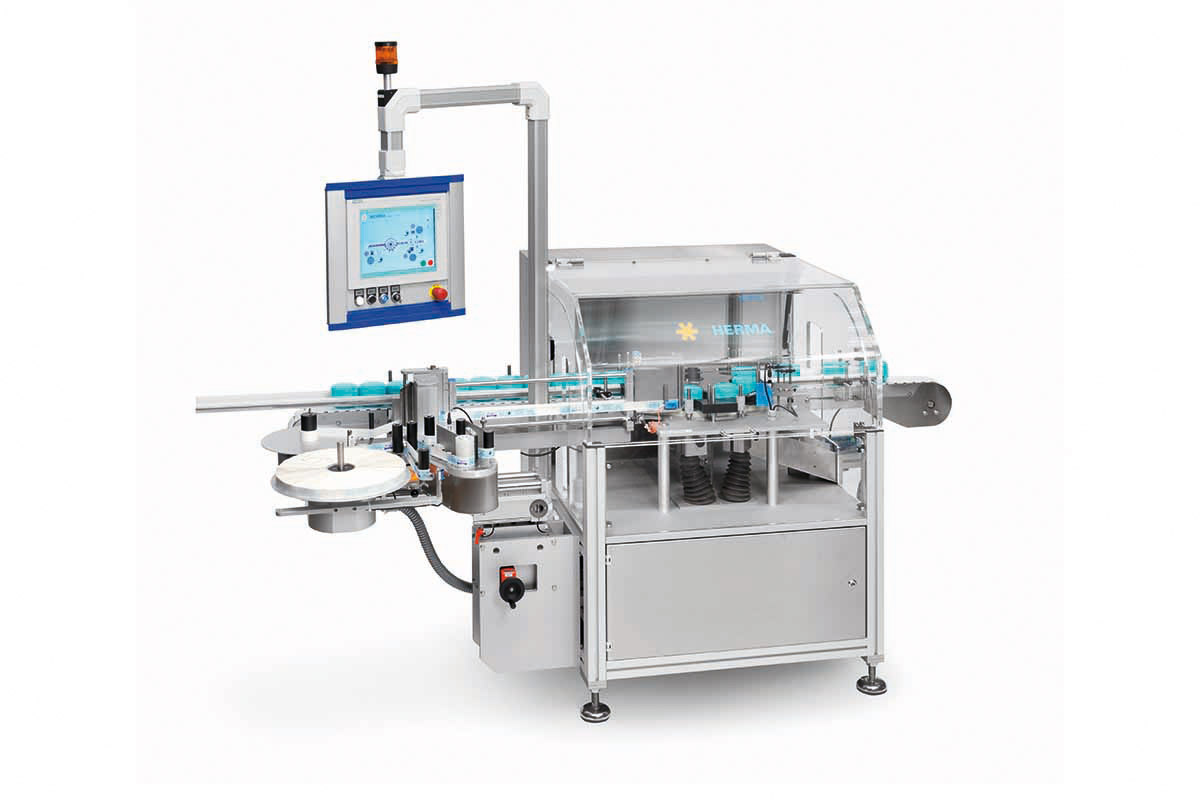

  • HERMA 040M - With the clocked starwheel, up to 120 products/minute can be labelled:
    Precision and reliable production make this easily convertible solution unbeatable - the clocked rotary star guarantees precise labelling with extreme performance.


Other advantages at a glance:

  • The compact, modular design from standard components enables the machines to be precisely and yet very economically assembled for individual requirements of individual users.
  • Cylindrical products with one or two labels on the circumference can be labelled more cost-effectively and in less time.
  • A user-friendly, ergonomic design, low makeready times and easy format changeover provide a further plus in terms of cost-effectiveness.
  • This labelling machine is used by a number of well-known international pharmaceutical manufacturers in various European countries.
  • In addition to cost-effectiveness, the labelling system for wrap-around labelling offers a high standard of safety.



Contact us now

The strong specialists for wrap-around labelling

[Translate to English:] HERMA Baureihe M



The wrap-around labellers in the M series can be changed over to a different product format quickly and easily. Control devices such as print presence, code control and label presence ensure a safe work process.

Machine with rotating parts and control mechanisms designed for industrial applications. Visible controls and sensors.

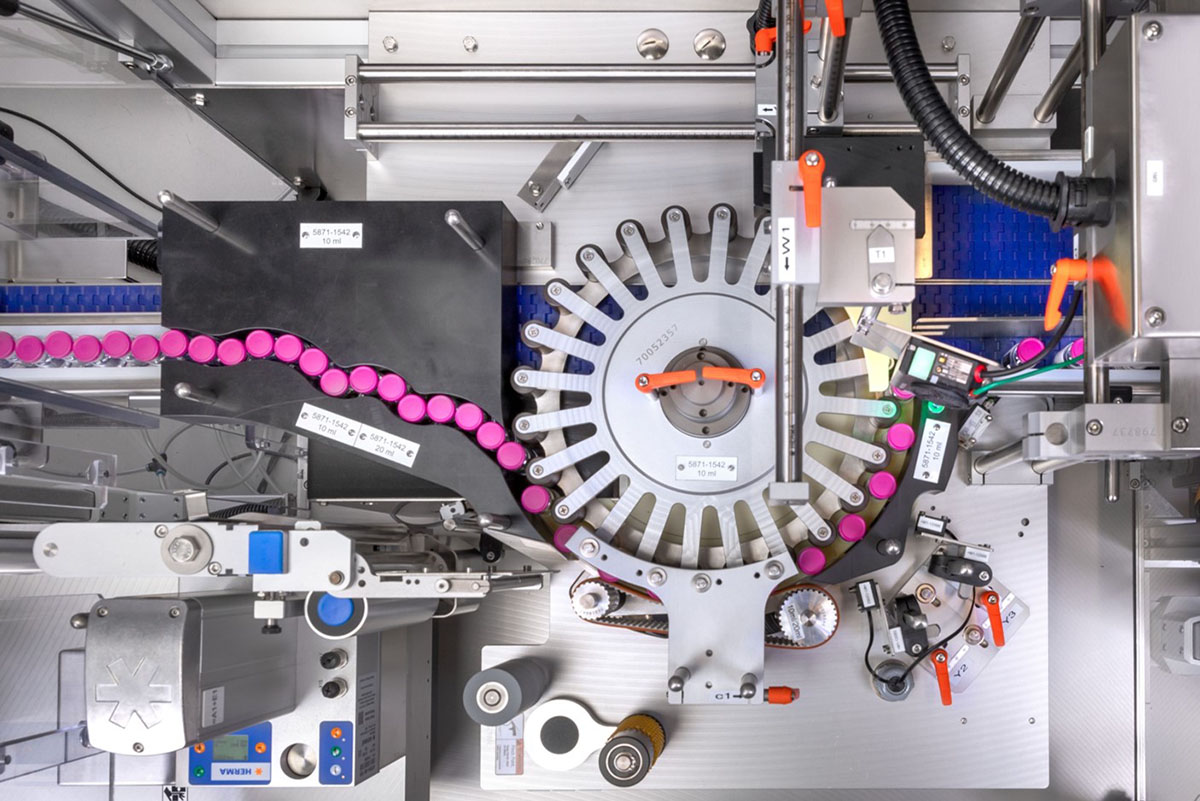

The HERMA 132M labelling machine processes up to 600 products per minute with its continuously running rotary star. With its clocked rotary star, the HERMA 040M enables extremely precise labelling of approx. 120 products per minute. It is particularly suitable for long, low labels. Optionally, the label can be aligned with a prominent product feature. Double labelling is also possible at any time.

Automated packaging machine with multiple control displays and a transparent casing, suitable for filling and labelling products.



Thanks to its compact design using standard components, the wrap-around labeller can be equipped very economically to meet the individual requirements of different applications. If required, it can be fully equipped for the healthcare industry in the HERMA 132M HC version. This makes it particularly interesting for companies where a complete qualification process must be documented and carried out. This high-performance machine is the perfect overall solution for the pharmaceutical industry and for the safety requirements that apply there, and with a wide range of solution-oriented options it is also extremely interesting for other branches of industry.



Technical data

Labelling type:

Wrap-around labelling

Product specifications:

Cylindrical, stable

Product dimensions:

14.75 - 100 x 36 - 230 mm (D x H)

Label dimensions:

10 - 80 x 30 - 265 mm (B x L)

Capacity:

Up to 600 products per minute with continuously rotating starwheel / up to 120 products per minute with clocked starwheel

Power supply:

400 V 3-phase TN-C-S supply, 50 Hz

Compressed air supply:

6 bar

Printer:

Various hot-foil, thermal transfer and laser printers (optional)

Components:

Control panel with 12” touchscreen, signal column, conveyor belt, side guides for products, infeed queue sensor, starwheel, applicator with digital position indicators for all mechanical adjustments,printer, print check, label presence check, product reject station, outfeed jam sensor, transparent machine guard, Siemens control, interface for remote maintenance

Options:

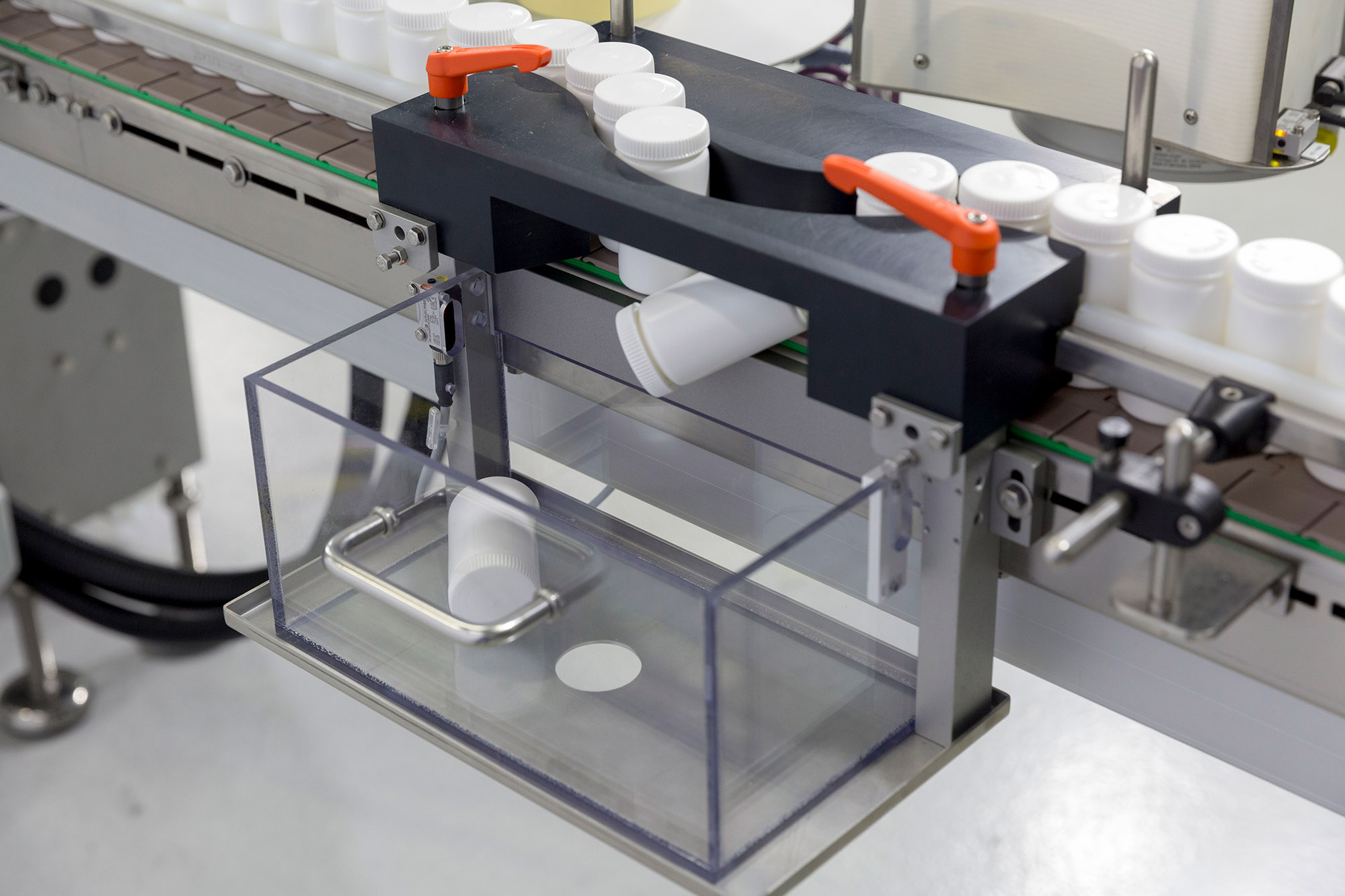

Rotary table, check or rejection of fallen products, code check, aligned wrap-around labelling, Allen-Bradley control, in-process control, data providing for batch report, audit trail, qualification

Note:

Depending on selected options, specified data may not apply
