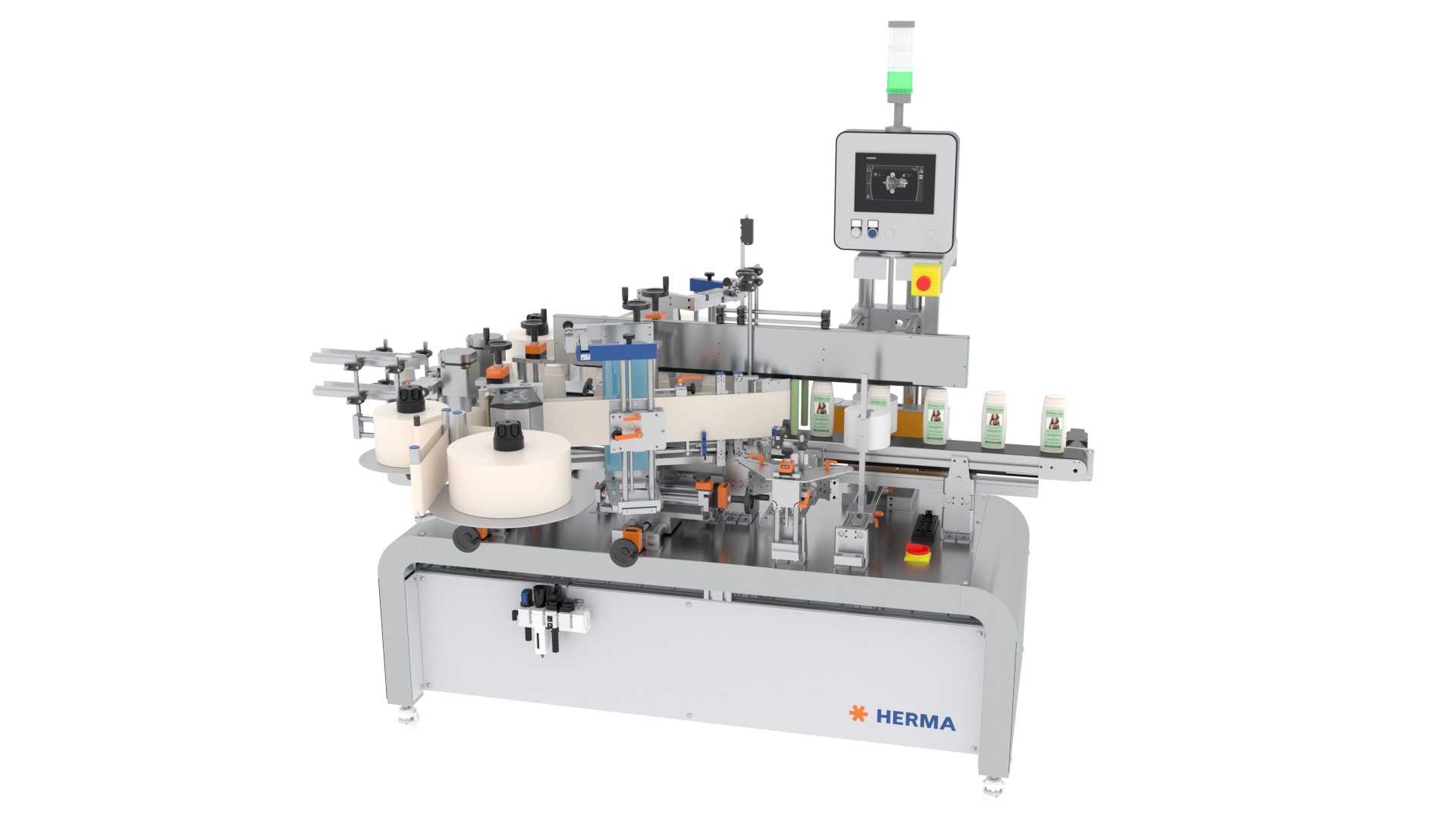

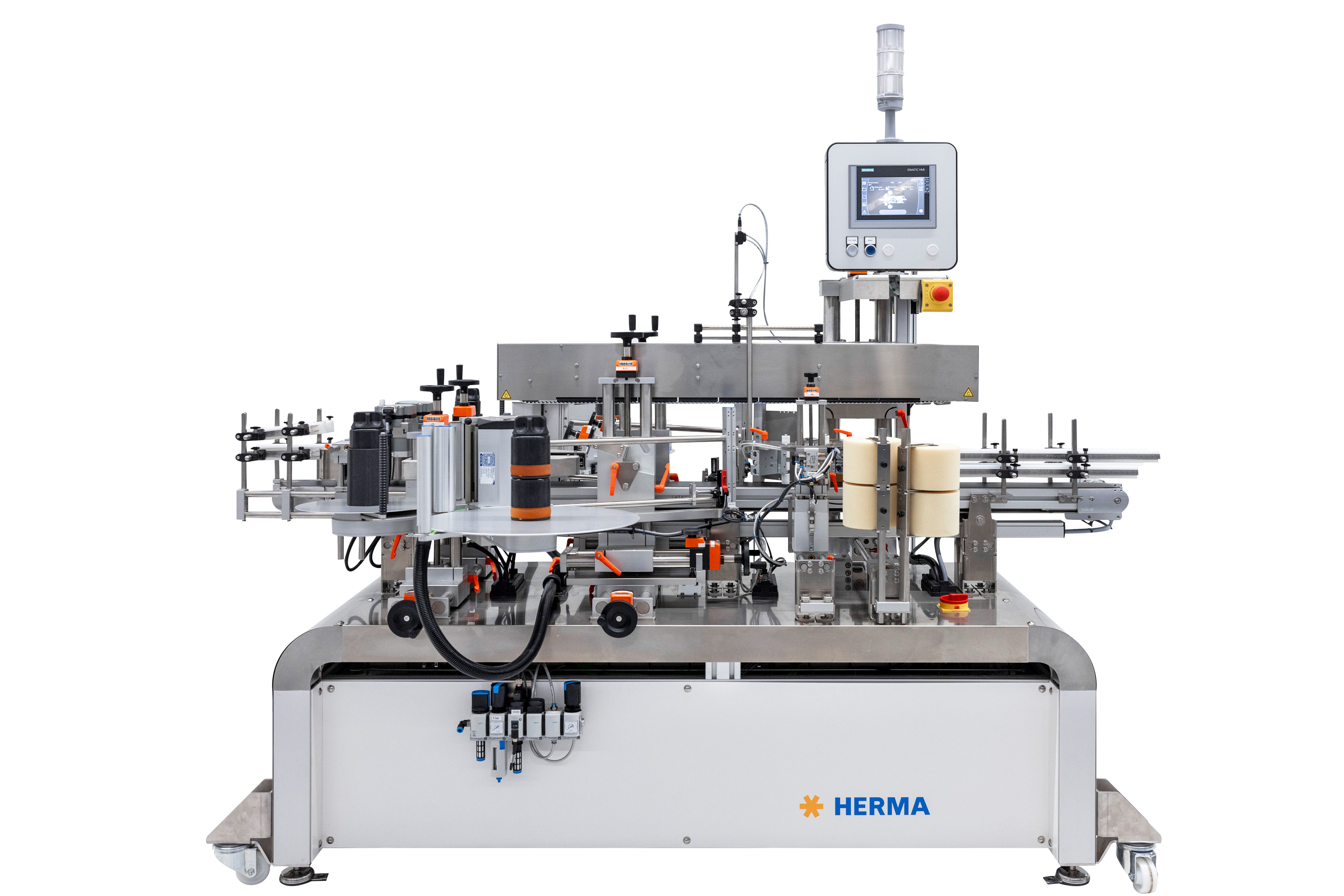

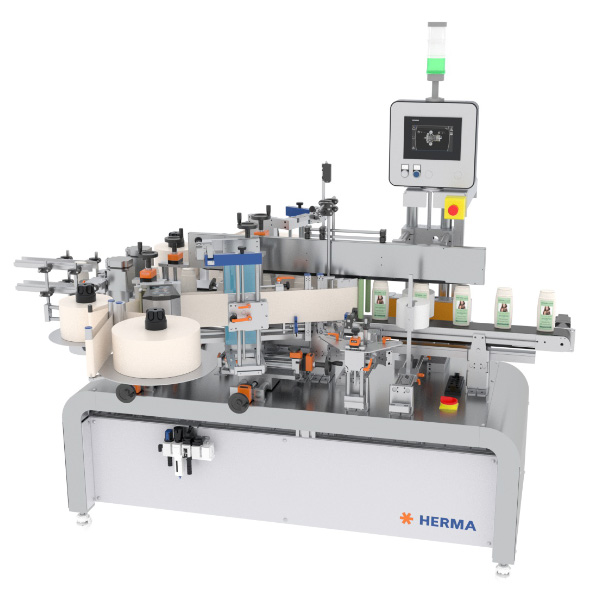

Two-side labeller HERMA 362E: powerful and sturdy

Automatic labelling machine with multiple stations, equipped with a control panel and various mechanical components for labelling products.

Automatic labelling machine with various stations for labelling bottles and containers, equipped with a control panel.

Powerful and sturdy side labelling system

The 362E two-sided labelling machine lets you label up to 200 products per minute
Fast, durable, compact & excellent price-performance ratio
A multitude of optional extras are available, and the machine can be fitted with a PLC controller with a very clear and easy-to-configure operator panel
Two high-performance applicators ensure a high output, even during continuous operation
The design means that no guards are required, which saves space
However, the enclosed stainless-steel base makes the labelling machine extremely stable
Handwheels with digital position indicators let you reproduce your optimum settings at all times
The labelling machine can be converted for wrap-around labelling in no time flat
The missing label check and product ejection features make the 362E fit for particularly demanding tasks

The 362E can flex its muscles in the tightest of spaces

Looking for high output but low on space? Then the 362E is the right machine for you. It provides the best of both worlds. The machine is versatile, extremely durable and as reliable at aligning and stabilizing products as its high-end sister from the 362M, but as compact as an entry-level model from the 362C. Its extremely short setup times and excellent price-to-performance ratio make it a firm favourite for a variety of tasks.

Best results & useful options

Two high-performance applicators ensure high throughput – even during continuous operation.
The machine’s design requires no protective housing, thereby saving space. Thanks to its closed stainless steel base the labelling machine is extremely stable.
Handwheels with digital position indicators enable users to replicate optimal settings at any time.
The machine can be converted to wrap-around labelling in little time.
Featuring a label presence check and a product reject station the 362E qualifies for especially demanding tasks.
A control panel including PLC control with intuitive user guidance ensures ease of use.

Automatic labelling machine with various stations for labelling, inspecting, and packaging bottles or containers.

Simple changeover for maximum flexibility

Automated machines for packaging, equipped with conveyor belts and various mechanical components for handling products.

The innovative design of the 362E makes the changeover from two-sided labelling to wrap-around labelling easier than ever before.

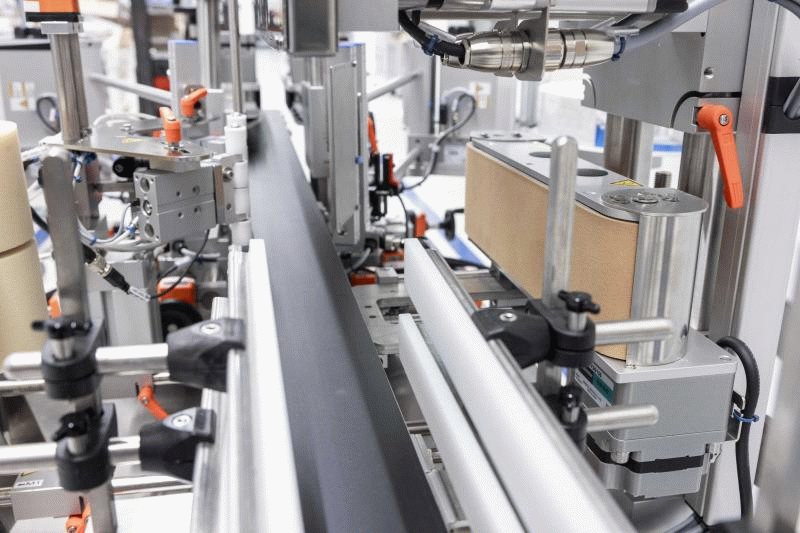

Thanks to the horizontal stand, the roll-on belt can be moved effortlessly from the home position to the working position without having to move heavy belts.
The high flexibility of the machine makes it ideal for automatic labelling of a wide range of formats, as the roll-on belt can be moved directly to the conveyor belt with little effort. This enables more ergonomic operation and saves valuable time during set-up and labelling.

The HERMA 362E guarantees quick and easy adaptation to changing requirements.

Technical data

Labelling type:	Two-side labelling • wrap-around labelling (optional)
Product specifications:	Rectangular, flat-arched to oval, cylindrical, free-standing
Product dimensions:	Two-side labelling: 30 - 200 x 30 - 120 x 30 - 300 mm (L x W x H) / Wrap-around labelling: 20 - 100 x 30 - 250 mm (D x H)
Label dimensions:	Two-side labelling: 15 - 240 x 30 - 200 mm (W x L) / Wrap-around labelling: 15 - 240 x 30 - 315 mm (W x L)
Capacity:	Up to 200 products/minute
Power supply:	400 V, TN-C-S, 50 Hz, 3 phases, 208 V, Delta 4-wire, 60 Hz, 3 phases (optional)
Compressed air supply:	6 bar
Printer:	Various hot-foil and thermal transfer printers (optional)
Components:	Control panel with 7 inch touchscreen, conveyor belt, side guides for products, belt-type separator, chain aligner, top belt, applicators, wipe-down station
Options:	Transfer plates at infeed and outfeed, wrap-around labelling with wrap-around belt and counterpressure plate or roller prism, wrap-around labelling with wrap-around roller and roller prism, moveable version, aligned wrap-around labelling, 3rd applicator, label presence check, product reject station
Note:	If optional features are chosen, the above data may vary

All series at a glance

Our 362 E-series two-sided labeller combines the space requirements of the small 362C series with the robustness and efficiency of the larger 362M series. The optional different add-on modules are designed in such a way that installation can be carried out with minimal time and cost expenditure. In the following overview you can see all series of the 362 with the most important criteria at 1 glance. If you have special safety requirements for your labelling application, our Tamper-Evident and Heathcare variants may be of interest. All our series can be flexibly converted to wrap-around labelling. If you have any questions or are interested, please contact our team of experts for a consultation.

Contact

Name *

Company Name *

ZIP *

Country *

Email Address *

Primary Phone

*=Mandatory fields

Information about the use of your personal data: Privacy Statement

Your message

Upload document (*.PDF, *.JPG)

Request for quotation

We produce labelling solutions according to your specifications - suitable for your application!

[Translate to English:] HERMA Formular Etikettiermaschinen Angebot anfordern

Please take a moment to provide us with some detailed information about your labelling solution requirements on the following page so that we can give you a good consultation.

To the form

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30-200 x 30-120 x 30- 300
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	max. 3.600 x 1.900 x 1.580
Printer	Hot foil printer, Thermal transfer printer
Control systems	none
Product rejection	no

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30-200 x 30-120 x 30- 300
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	max. 3.600 x 1.900 x 1.990
Printer	Hot foil printer, Thermal transfer printer
Control systems	Label presence check
Product rejection

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	25-110 x 25–82 x 50-320
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	3.165 x 1.315 x 2.700
Printer	Hot foil printer, Thermal transfer printer
Control systems	Print presence check on label, Label presence check
Product rejection

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30–120 x 80–250 x 20–120
Label height [mm]	15 – 40
Label length [mm]	15 – 40
Capactiy [products/min]	200
Machine length lxwxh [mm]	Approx. 1.600 x 1.495 x 2.035
Printer	Inkjet printer
Control systems	Tamper-evident label presence check on product, Tamper-evident label folding check on product, Print and code check on label
Product rejection
