Two-side labeller HERMA 362C: flexible, quick & easy to retool

Automatic labelling machine from HERMA with multiple stations for labelling bottles and containers.

The 362C can be retooled in no time at all

Compact and stable labelling machine that works virtually without format parts and yet covers a very wide range of product formats
Flexible, quick and easy to retool for precise side labelling
High efficiency combined with low investment costs
Two high-performance applicators ensure a high output, even during continuous operation
The 362C two-sided labeller allows you to label up to 200 products per minute
Its compact design makes it suitable even for difficult installation situations
The machine can be converted for wrap-around labelling in no time at all
Entry-level variant in the C (Compact) series – for further options and extras, take a look at our E (Economy) and M (Master) series as well

Do format changes still take up too much of your time?

The compact machine for two-side labelling operates largely without format parts, allowing for quick and easy changeovers to different product formats. Two highperformance applicators with a pivot peel plate deliver performance and precision. And labelling speed is not only one of the 362C’s defining characteristics – thanks to its modular design, delivery is also especially fast. If required, it can also easily be converted to wrap-around labelling, giving users even more application options.

Best results & useful options

Thanks to the high-performance applicators of HERMA the 362C has sufficient reserve capacities while going easy on the investment budget.
With a very compact design it is well-suited even for difficult assembly situations.
Despite largely requiring no format parts it covers a very wide spectrum of product formats.
The machine can be converted to wrap-around labelling in little time.
Hot-foil or thermal transfer printers can be easily integrated in order to print variable data.
The conveyor is available with a belt or slats, length 2,160, 2,660 or 3,160 mm.

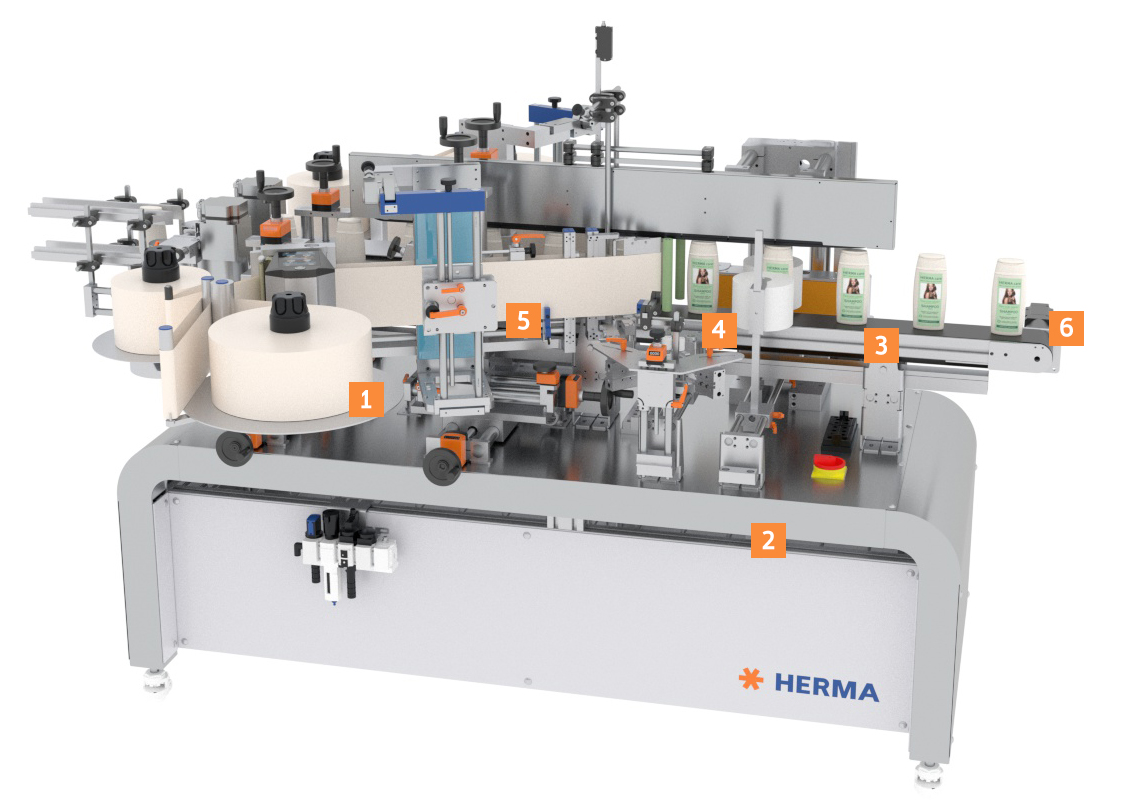

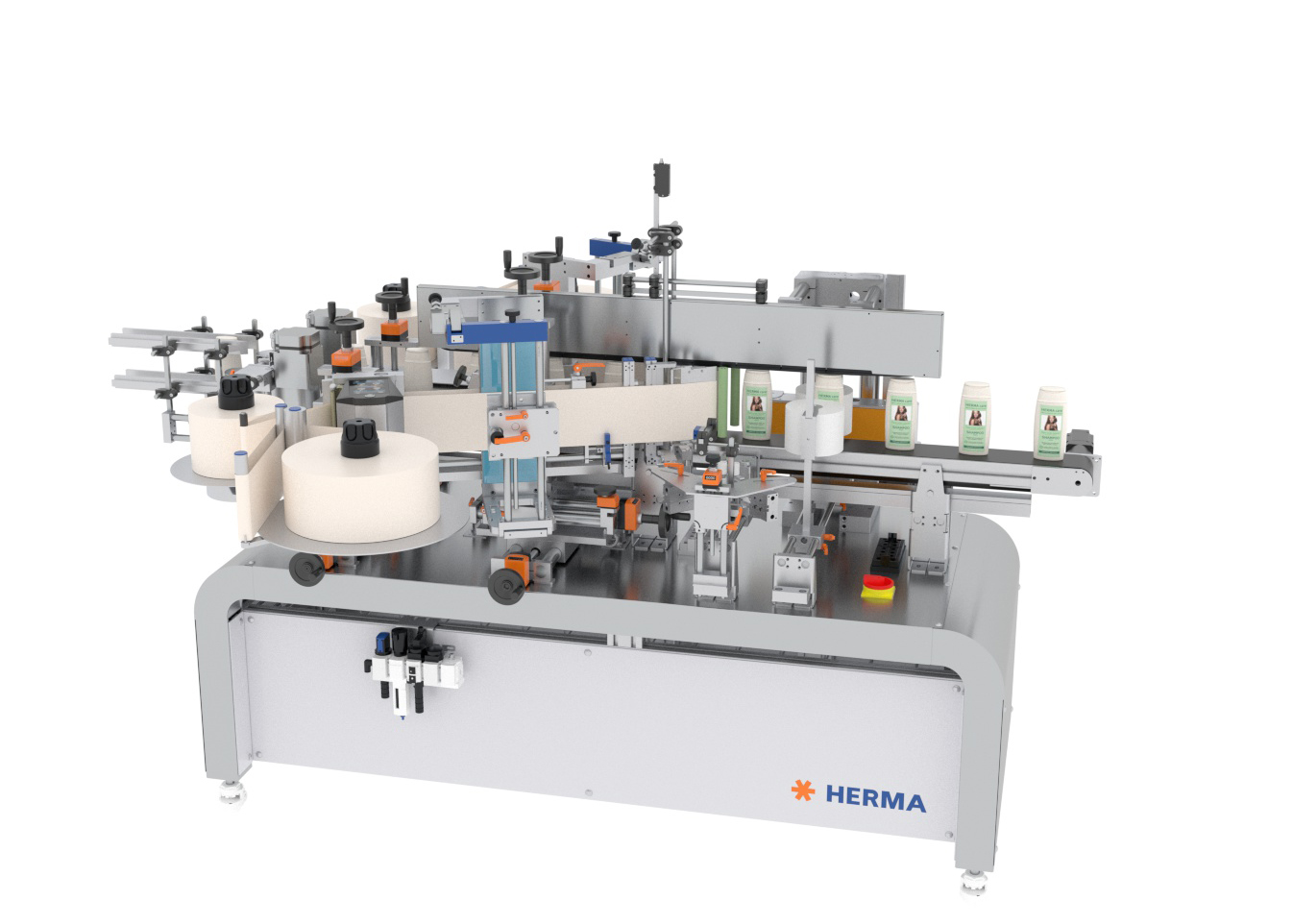

Automatic labelling machine with multiple stations, equipped with rolls for labels and containers, manufactured by HERMA.

Simple changeover for maximum flexibility

Automated machines for packaging, equipped with conveyor belts and various mechanical components for handling products.

The innovative design of the 362E makes the changeover from two-sided labelling to wrap-around labelling easier than ever before.

Thanks to the horizontal stand, the roll-on belt can be moved effortlessly from the home position to the working position without having to move heavy belts.
The high flexibility of the machine makes it ideal for automatic labelling of a wide range of formats, as the roll-on belt can be moved directly to the conveyor belt with little effort. This enables more ergonomic operation and saves valuable time during set-up and labelling.

The HERMA 362E guarantees quick and easy adaptation to changing requirements.

Technical data

Labelling type:	Two-side labelling • wrap-around labelling (optional)
Product specifications:	Rectangular, flat-arched to oval, cylindrical, free-standing
Product dimensions:	Two-side labelling: 30 - 200 x 30 - 120 x 30 - 300 mm (L x W x H) / Wrap-around labelling: 20 - 100 x 30 - 250 mm (D x H)
Label dimensions:	Two-side labelling: 15 - 240 x 30 - 200 mm (W x L) / Wrap-around labelling: 15 - 150 x 30 - 315 mm (W x L)
Capacity:	Up to 200 products/minute
Power supply:	400 V, TN-C-S, 50 Hz, 3 phases, 208 V, Delta 4-wire, 60 Hz, 3 phases (optional)
Compressed air supply:	6 bar
Printer:	Various hot-foil and thermal transfer printers (optional)
Components:	Conveyor belt, side guides for products, top belt, applicators
Options:	Transfer plates at infeed and outfeed, belt-type separator, chain aligner, wrap-around labelling with wrap-around belt and counterpressure plate, movable version, wipe-down station, 3rd applicator
Note:	If optional features are chosen, the above data may vary

Downloads

File name

File type

File size

Leaflet-HERMA-362C-EN.pdf

pdf

1 MB

Download

Contact

Name *

Company Name *

ZIP *

Country *

Email Address *

Primary Phone

*=Mandatory fields

Information about the use of your personal data: Privacy Statement

Your message

Upload document (*.PDF, *.JPG)

Request for quotation

We produce labelling solutions according to your specifications - suitable for your application!

[Translate to English:] HERMA Formular Etikettiermaschinen Angebot anfordern

Please take a moment to provide us with some detailed information about your labelling solution requirements on the following page so that we can give you a good consultation.

To the form

All series at a glance

Our 362 C-series two-side labeller is reliable and powerful, yet focused on the essentials. It does not require an operator panel, can be easily expanded with optional standard modules, and is available at very short notice. The other expansion stages 362E and 362M have additional options, operating panels and various control options. In the following overview you can see all series of the 362 with the most important criteria at 1 glance. If you have special safety requirements for your labelling application, our Tamper-Evident and Heathcare variants might be of interest. All our series can be flexibly converted to wrap-around labelling. If you have any questions or are interested, please contact our team of experts for a consultation.

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30-200 x 30-120 x 30- 300
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	max. 3.600 x 1.900 x 1.580
Printer	Hot foil printer, Thermal transfer printer
Control systems	none
Product rejection	no

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30-200 x 30-120 x 30- 300
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	max. 3.600 x 1.900 x 1.990
Printer	Hot foil printer, Thermal transfer printer
Control systems	Label presence check
Product rejection

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	25-110 x 25–82 x 50-320
Label height [mm]	15 – 240
Label length [mm]	30 – 200
Capactiy [products/min]	200
Machine length lxwxh [mm]	3.165 x 1.315 x 2.700
Printer	Hot foil printer, Thermal transfer printer
Control systems	Print presence check on label, Label presence check
Product rejection

Product guide	Linear belt with top belt
Product dimensions lxwxh [mm]	30–120 x 80–250 x 20–120
Label height [mm]	15 – 40
Label length [mm]	15 – 40
Capactiy [products/min]	200
Machine length lxwxh [mm]	Approx. 1.600 x 1.495 x 2.035
Printer	Inkjet printer
Control systems	Tamper-evident label presence check on product, Tamper-evident label folding check on product, Print and code check on label
Product rejection
