Top labeller HERMA 452C: quickly ready for use at all times

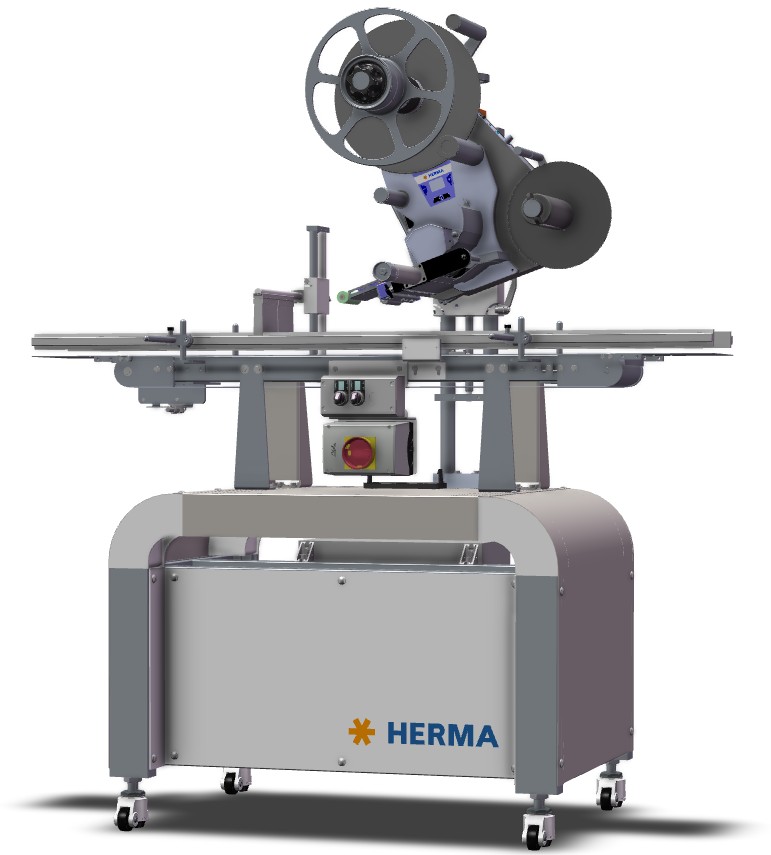

Automatic labelling machine with a rewinder and a control unit, mounted on a sturdy frame.

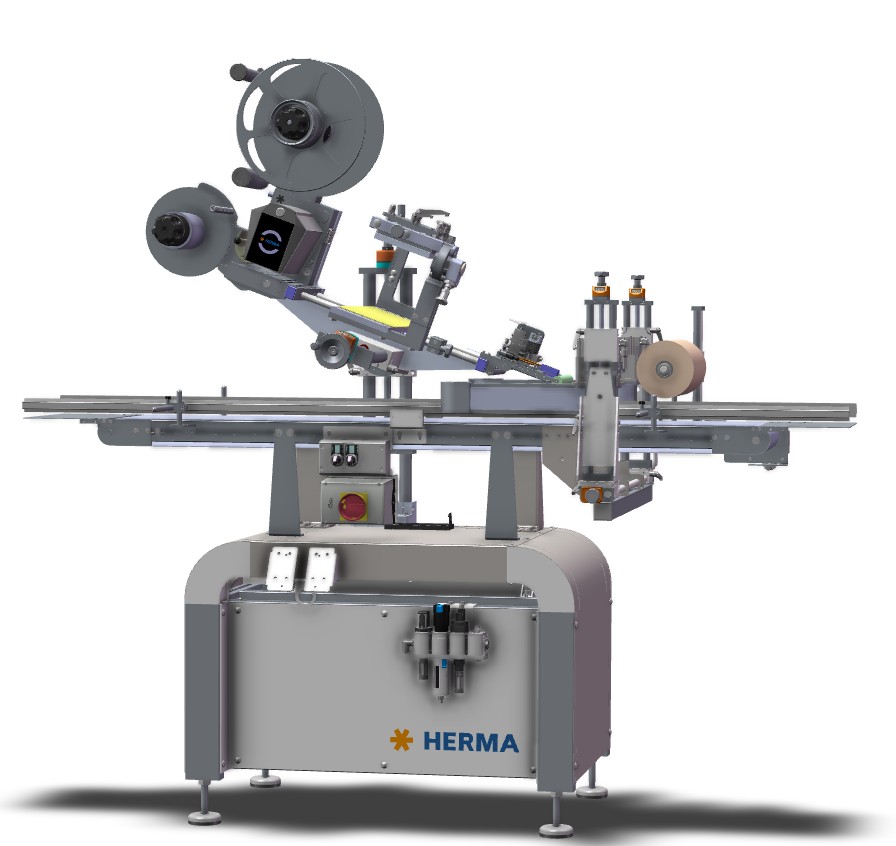

Automatic labelling machine with multiple rolls and a sturdy base, equipped with control elements and a labelling mechanism.

452C - the high-flyer in top labelling

  • Equipped with the HERMA eco or HERMA 500
  • Precise top labelling on all types of surfaces
  • Easy to integrate into any kind of production line
  • Extremely efficient and highly productive
  • Space-saving, compact and hugely versatile
  • Easy to integrate printers for variable labelling
  • Can be combined with the highly reliable 552C bottom labeller



Contact us now

Using the 452C means being on top

The 452C for top labelling is compact, versatile and reliable. It has been developed and designed based on the modular HERMA technology kit, meaning it is quickly ready for use at all times. At the same time, no top labelling challenge is too great for this machine. No matter whether the product surfaces are smooth and flat or uneven and recessed, the HERMA eco or HERMA 500 ensures a high throughput in all cases.

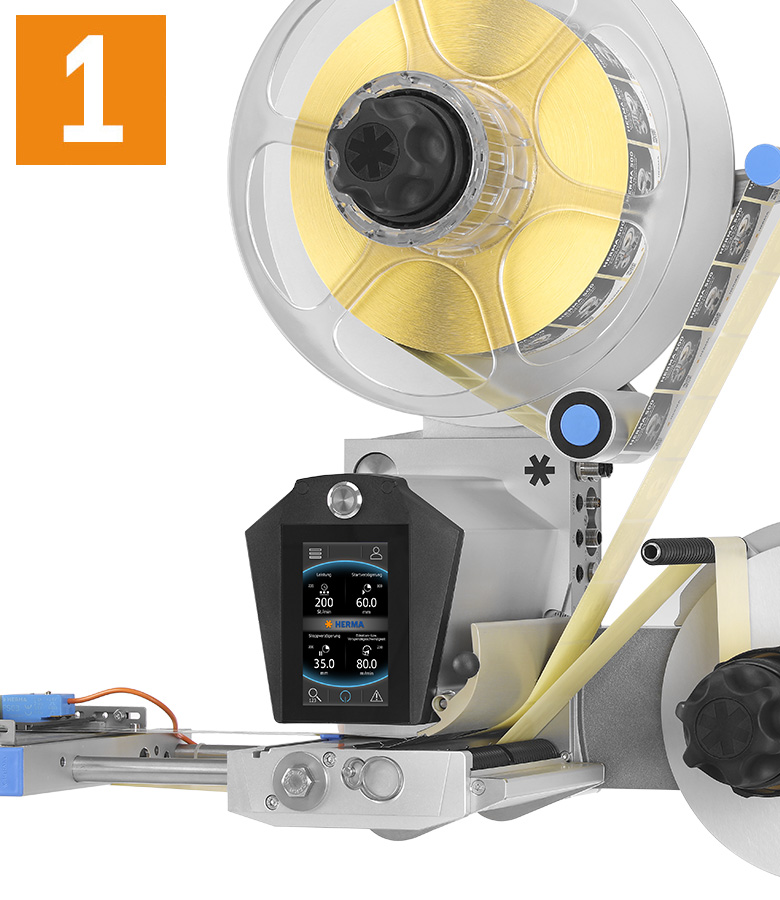

1. Ultimate performance thanks to HERMA applicator

With the new HERMA eco, you can count on top performance at the best price in every respect. Reliable, precise, and easy to use—this makes the HERMA eco unique in its class. An upgrade to the HERMA 500 with a 4.3-inch colour Touchscreen is available directly in the machine configurator

2. Precision label scanning

The FS03 with automatic label detection scans the last label on the dispensing beak to guarantee maximum precision

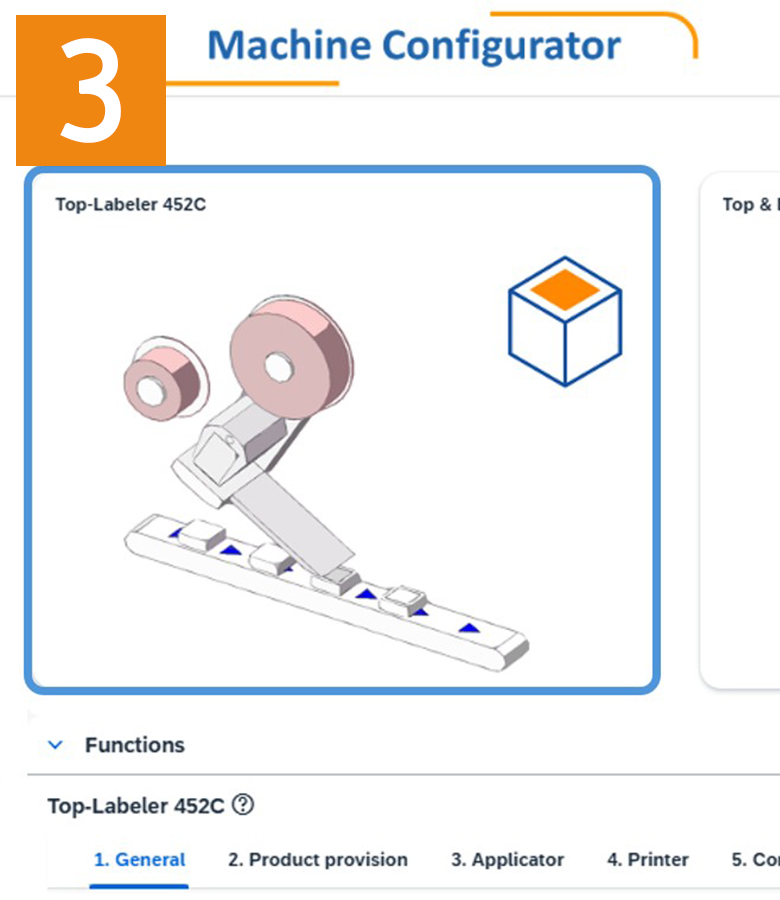

3. Shortest delivery times

The wide range of options can be selected individually for each customer in the machine configurator. Thanks to their modular orientation and standardised assemblies the labelling machines can be delivered in the shortest of times

4. Flexible installation locations

All the models can be supplied as mobile versions, allowing you to position the machine wherever it is currently required

5. Printing variable data

It is also easy to integrate a hot-foil printer and thermal transfer printers for printing variable data

6. Adapted to your requirements

Whether cartons, trays, or flat products—the machine is versatile and can be converted in no time thanks to various peel plates and tool-less adjustments



Technical Data

Labelling type:

Top labelling

Product specifications:

Rectangular, cylindrical, dimensionally stable

Product dimensions:

30 - 300 x 10 - 250 x 38 - 300 mm (L x W x H)

Label dimensions:

15 - 160 x 30 - 300 mm (W x L)

Capacity:

Up to 250 products/minute

Power supply:

230 V, 50 Hz, 1 Phase

Compressed air supply:

6 bar (optional)

Printer:

Various hot-foil printers and thermal transfer printers (optional)

Components:

Conveyor belt, side guide for products, applicator(s), control panel

Options:

Transfer plates at infeed and outfeed, moveable version, digital position indicators, side belts, wipe-down roller, re-rolling brush

Note:

If optional features are chosen, the above data may vary

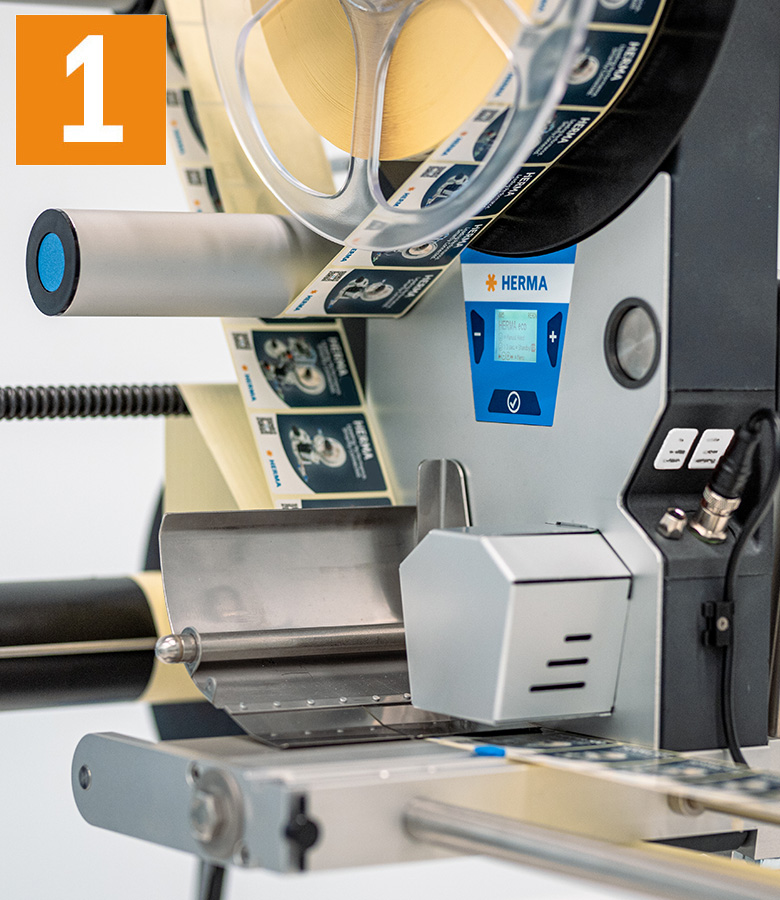

Labelling machine with a roll of labels, control display, and operating controls. The machine is ready for the labelling process.
A device for processing materials with a blue control unit and a conveyor belt that transports documents.
Top Labeller 452C with two rollers and an application element, presented in a technical configuration layout.
Roller of a mobile device, featuring an adjustable foot and a sturdy metal frame. The scooter is equipped with a braking system.
User interface with icons for 'Application' and 'Printer', with the number 5 in orange below.

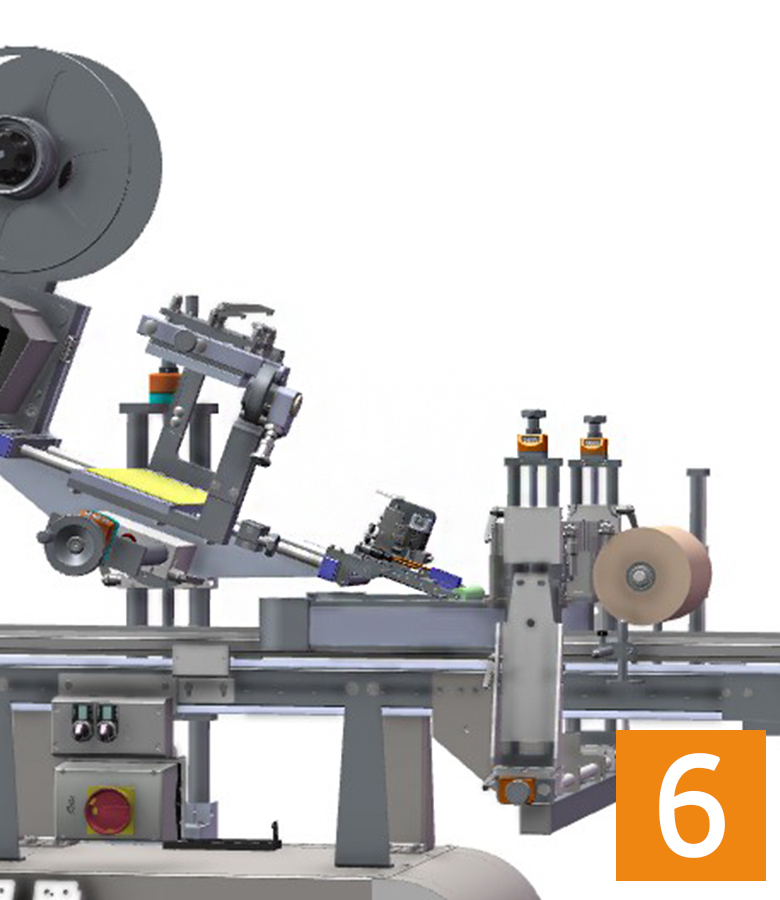

Machine for processing materials with rollers, conveyor belt, and various mechanical components. Number 6 highlighted.
